About product
Output power capacity: 1.4kWatts / 2.0kVA
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: IEC-320 C14

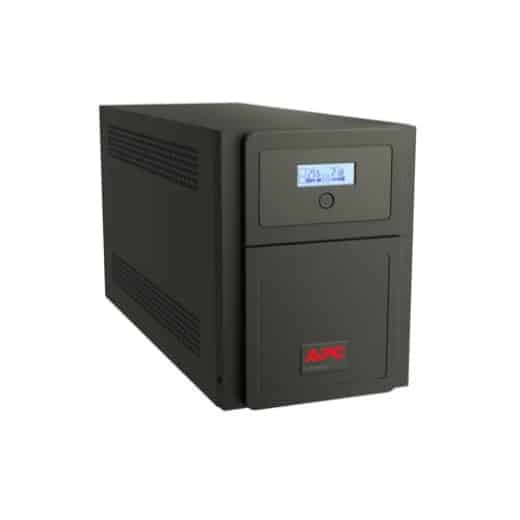

APC Easy UPS SMV 2000VA, Universal Outlet, 230V
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Includes: Documentation CD, USB cable, User Manual
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Cold-start capable
Provides temporary battery power when the utility power is out.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters, and alarms.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps, and battery damage due to low voltage situations.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Manageability
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Protection
Battery and surge-protected outlets
Back up and protect your hardware and data during power outages, surges, and spikes.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Features
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable
Provides temporary battery power when the utility power is out.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Output
Max Configurable Power (Watts)
1.4kWatts / 2.0kVA
Output Frequency (not synced): 50/60 Hz +/-1 Hz:
Load Crest Factor: 3: 1
Topology: Line Interactive
Waveform type: Sine wave
Transfer Time: 2ms typical
Input
Input frequency: 45 – 65 Hz (auto sensing)
Input voltage range for main operations: 157 – 303V
Number of Power Cords: 1
Other Input Voltages: 220, 240
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time
4hour(s)
Expected Battery Life (years) – 3 – 5
Battery Volt-Amp-Hour Capacity – 302
