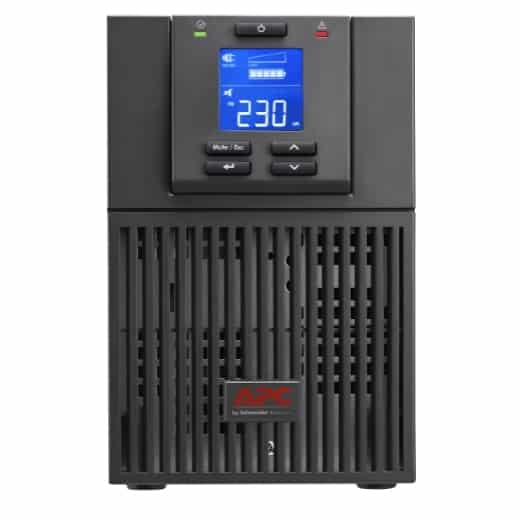

Apc Easy Ups Srv 1000va 230v (Srv1ki)
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Includes: Basic UPS signalling RS-232 cable, CD with software, USB cable, User Manual
Output power capacity
Output Connections
(3) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
Nominal Input Voltage
230V
Input Connections
IEC-320 C14
Cord Length
1.5meters
APC Easy UPS SRV 1000VA 230V
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Includes: Basic UPS signalling RS-232 cable, CD with software, USB cable, User Manual
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
The operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Intelligent SmartSlot
The mini slot supports various optional management cards that provide basic or essential monitoring, management, and control features for the UPS.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters, and alarms.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Output
Max Configurable Power (Watts)
800Watts / 1.0kVA
Output Voltage Note
Configurable for 220: 230 or 240 nominal output voltage
Efficiency at Full Load
88.0 %
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3: 1
Topology
Double Conversion Online
Waveform type
Sine wave
Bypass
Internal Bypass (Automatic and Manual)
Input
Input frequency – 40 – 70 Hz
Input voltage range for main operations – 160 – 280V
Input voltage adjustable range for mains operation
110 – 285 (half load)V
Number of Power Cords – 1
Efficiency at Full Load – 88.0 %
Other Input Voltages – 220, 240
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Included Battery Modules
Typical recharge time
4hour(s)
Battery Charge Power (Watts)
38Watts
Battery Volt-Amp-Hour Capacity
152
