About product

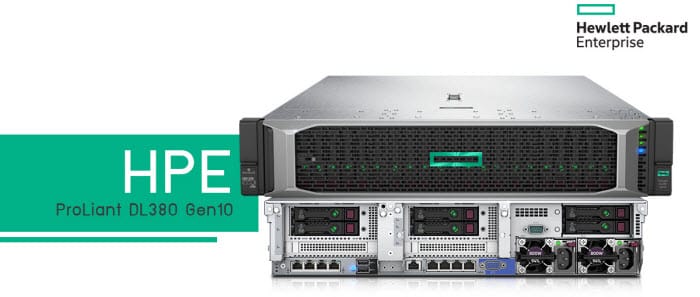

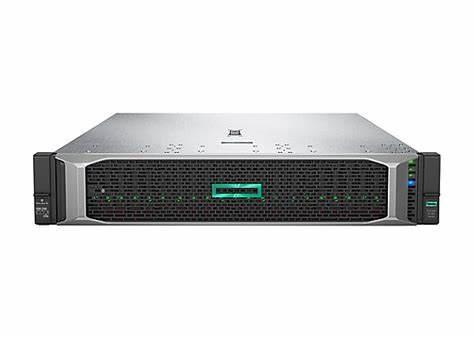

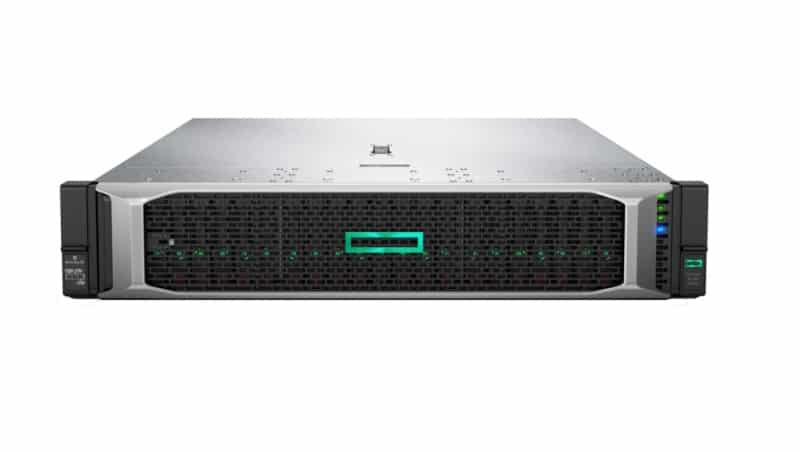

HPE DL380 Gen 10 High-Performance Intel Xeon Gold 6130 2P (2.1GHz/16-core/120W), 2x32GB 2666 MT/s, 1Gb Ethernet 4-Port 331i Adapter plus HPE Ethernet 25 Gb 2-port 631FLR Adapter, P408i-a, 8SFF 8 SFF Chassis (upgradeable to 24 SFF front + 6SFF rear) DVD-RW, 2x 800W HPE FlexSlot power supply 2U Rack, Easy Install rails with CMA. 3 Years Warranty
What is your server bottleneck…storage, compute, expansion? The world’s best-selling server1 just got better. The HPE ProLiant DL380 Gen10 Server delivers the latest in security, performance, and expandability. While backed by a comprehensive warranty, makes it ideal for any server environment. Standardize on the industry’s most trusted computing platform. The HPE ProLiant DL380 Gen10 Server is securely designed to reduce costs and complexity, the Intel® Xeon® Processor Scalable Family with up to a 71% performance gain and 27% increase in cores, plus the HPE 2666 MT/s DDR4 SmartMemory supporting 3.0 TB and up to 11% faster than 2400 MT/s. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory, optimized on HPE ProLiant Servers, offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications, and deploy with confidence.
What’s new
– Security through firmware and optional chassis intrusion options
– HPE performance leadership with Persistent Memory
– HPE innovation with Intelligent System Tuning
– Modular chassis with greater drive capacity and flexibility
– Supports Intel® Xeon® Processor Scalable Family
Features
Flexible Design Making Your Investment Expand As Your Business Needs Grow
– The HPE ProLiant DL380 Gen10 Server has an adaptable chassis, including new HPE modular drive bay configuration options with up to 30 SFF, up to 19 LFF, or up to 20 NVMe drive options along with support for up to 3 double wide GPU options.
– HPE Persistent Memory delivers unprecedented levels of performance and data resiliency for databases and analytic workloads. With up to 27x faster4 application checkpoint operations and 20x faster restores, HPE delivers the fastest persistent memory in the market at TB-scale.
– In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controllers most suited to your environment and operate in both SAS and HBA mode.
– Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 40GbE) and fabric so you can adapt and grow to changing business needs.
– Supporting a wide range of operating environments from Azure to Docker to ClearOS in addition to traditional OSes.
Security Innovations
– Only Hewlett Packard Enterprise offers industry-standard servers with major firmware anchored directly into the silicon. With security protection built-in across the server life-cycle starting with Silicon Root of Trust.
– Millions of lines of firmware code run before the server operating system boots and with Run-Time Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
– Secure Recovery allows server firmware to roll back to the last known good state or factory settings after the detection of compromised code.
– Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and securely store artifacts used to authenticate the server platforms while the Intrusion Detection kit logs and alerts when the server hood is removed.
World-Class Performance
– HPE innovation with Intelligent System Tuning optimizes workload performance using customized profiles to tune internal resources, with improved throughput for all workloads including latency-sensitive workloads such as high-frequency trading with jitter smoothing.
– The HPE ProLiant DL380 Gen10 Server supports industry-standard technology leveraging the latest Intel® Xeon® Processor Scalable Family with up to 28 cores, 12 Gb SAS, and 3.0 TB6 of HPE DDR4 SmartMemory.
– The HPE ProLiant DL380 Gen10 supports up to three double wide or five single wide GPUs for workload acceleration.
Industry Leading Services and Ease of Deployment
– The HPE ProLiant DL380 Gen10 Server comes with a complete set of HPE Technology Services, delivering confidence, reducing risk and helping customers realize agility and stability.
– HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
– Services provided under Operational Services include Flexible Capacity, Datacenter Care, Infrastructure Automation, Campus Care, Proactive Services and Multi-vendor coverage.
– HPE IT investment solutions help you transform into a digital business with IT economics that aligns to your business goals
Processor | |
---|---|
Thermal Design Power (TDP) | 85 W |
Tcase | 77 °C |
Supported instruction sets | AVX,AVX 2.0,AVX-512,SSE4.2 |
Scalability | 2S |
Processor threads | 16 |
Processor package size | 76 x 56.5 mm |
Processor operating modes | 64-bit |
Processor lithography | 14 nm |
Processor codename | Skylake |
Memory types supported by processor | LPDDR4-SDRAM |
Memory clock speeds supported by processor | 2400 MHz |
Memory channels supported by processor | Hepta |
Maximum number of PCI Express lanes | 48 |
Maximum internal memory supported by processor | 768 GB |
Execute Disable Bit | Yes |
Embedded options available | Yes |
ECC supported by processor | Yes |
Processor cache type | L3 |
Processor cache | 11 MB |
Conflict-Free processor | Yes |
Processor frequency | 2.1 GHz |
Processor boost frequency | 3 GHz |
Number of processors installed | 1 |
Processor model | 4110 |
Processor socket | LGA 3647 |
Processor cores | 8 |
Processor family | Intel Xeon Silver |
Memory | |
Internal memory | 16 GB |
Memory layout (slots x size) | 1 x 16 GB |
Memory slots | 24 DIMM |
Memory clock speed | 2666 MHz |
Maximum internal memory | 768 GB |
Internal memory type | DDR4-SDRAM |
Storage | |
Supported storage drive interfaces | Serial ATA III, Serial Attached SCSI |
Supported hard disk drive sizes | 2.5″ |
RAID support | Yes |
Number of hard drives supported | 8 |
Maximum storage capacity | 72 TB |
Graphics | |
On-board graphics adapter | No |
Networking | |
LAN controller | HP 331i |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces | |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
Ethernet LAN (RJ-45) ports | 4 |
DisplayPorts quantity | 1 |
Expansion slots | |
PCI Express slots version | 3.0 |
Optical drive | |
Optical drive type | No |
Design | |
Rack mounting | Yes |
Optical drive type | No |
Chassis type | Rack (2U) |
Performance | |
Compatible operating systems | Windows Server 2012 R2 Windows Server 2016 VMware ESXi 6.0 U3 VMware ESXi 6.5 & U1 Red Hat Enterprise Linux (RHEL) 6.9 & 7.3 SUSE Linux Enterprise Server (SLES) 11 SP4 & 12 SP2 ClearOS CentOS |
Operating system installed | No |
Software | |
Compatible operating systems | Windows Server 2012 R2 Windows Server 2016 VMware ESXi 6.0 U3 VMware ESXi 6.5 & U1 Red Hat Enterprise Linux (RHEL) 6.9 & 7.3 SUSE Linux Enterprise Server (SLES) 11 SP4 & 12 SP2 ClearOS CentOS |
Operating system installed | No |
Processor special features | |
Enhanced Intel SpeedStep Technology | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel TSX-NI | Yes |
Intel Trusted Execution Technology | Yes |
Intel® Hyper-Threading Technology (Intel® HT Technology) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel 64 | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Processor ARK ID | 123547 |
Power | |
Power supply | 500 W |
Certificates | |
Energy Star certified | Yes |
Technical details | |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Supported hard disk drive sizes | 2.5″ |
Rack mounting | Yes |
Ethernet interface type | Gigabit Ethernet |
Chassis type | Rack (2U) |
Weight & dimensions | |
Width | 445.5 mm |
Weight | 14.8 kg |
Height | 87.4 mm |
Depth | 730.3 mm |
