Name: Generic VK-172 USB GPS GLONASS Receiver
Brand: Generic
SKU: GEN-VK172-GPS
Price: 10000 NGN
Availability: InStock

Key Features:
• USB GPS Receiver: Connects directly to a compatible computer or embedded system through a standard USB interface and supplies satellite-positioning data to navigation or mapping software.
• GPS and GLONASS Support: The VK-172 hardware family supports GPS and GLONASS positioning modes using the U-blox 7020 platform found in commonly documented versions.
• 56 Tracking Channels: Supports up to 56 tracking channels with L1 satellite reception and compatible DGPS correction services including WAAS EGNOS and MSAS.
• NMEA Data Output: Outputs standard NMEA positioning data for use with compatible navigation mapping logging and positioning applications.
• Fast Satellite Reacquisition: Documented specifications indicate approximately 29 seconds cold start 28 seconds warm start and around 1 second hot start under suitable conditions.
• High Tracking Sensitivity: Rated tracking sensitivity is approximately -162 dBm with acquisition sensitivity around -160 dBm on documented VK-172 variants. View More

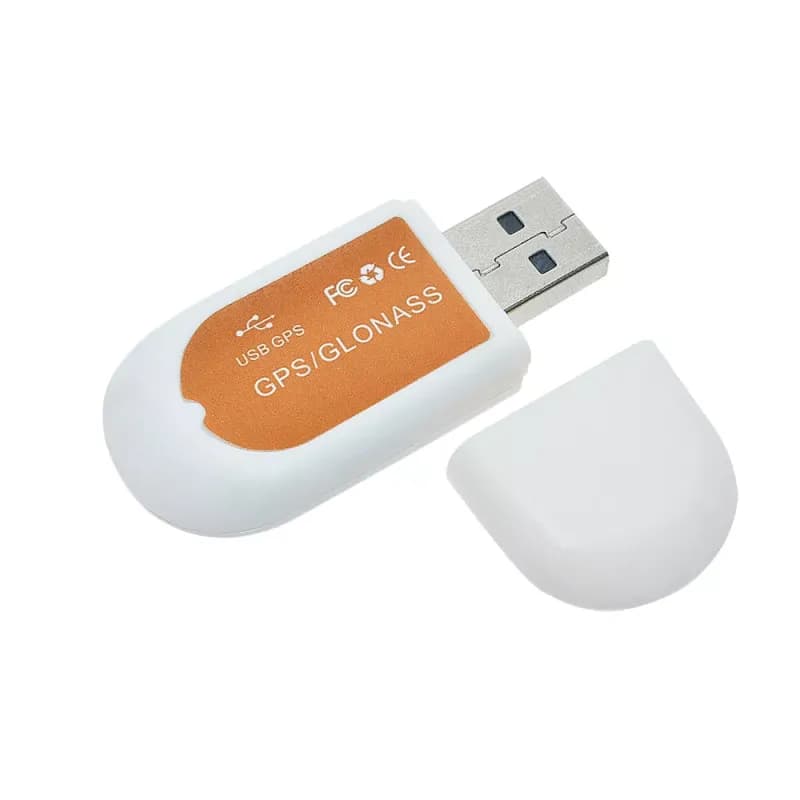

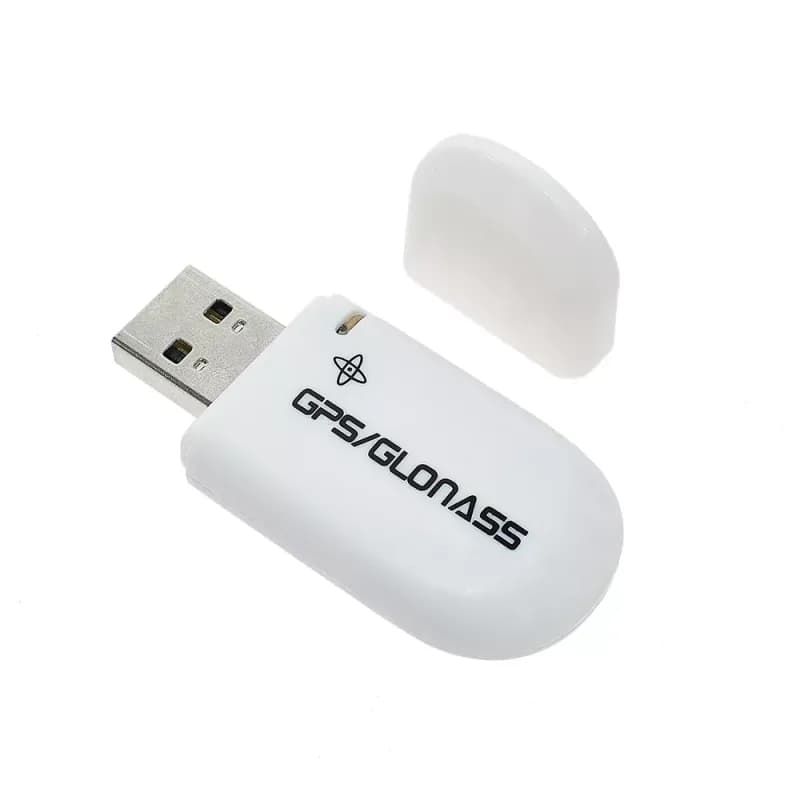

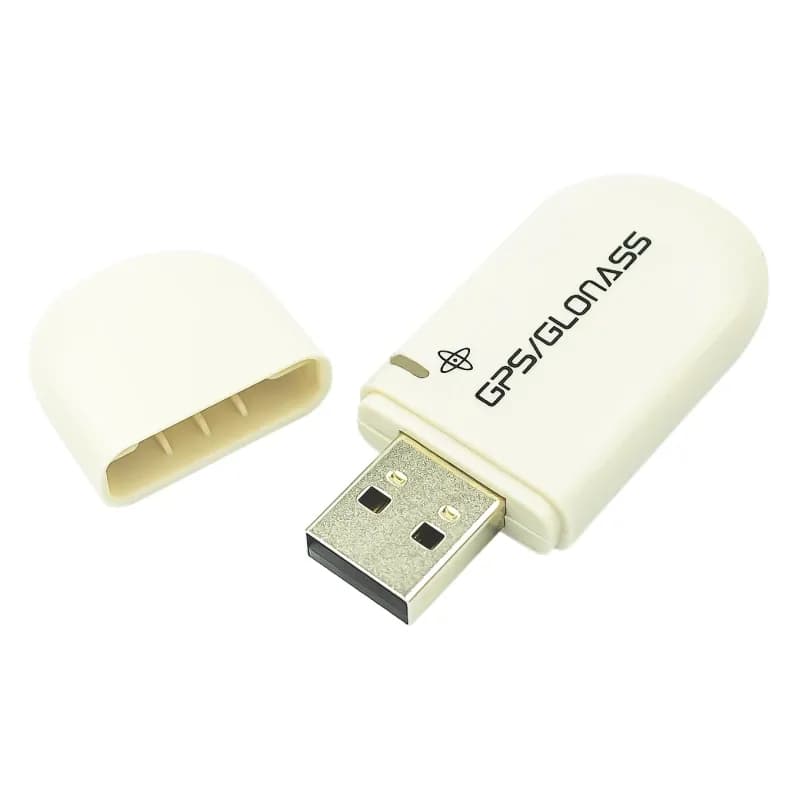

Generic VK-172 USB GPS GLONASS Receiver

The Generic VK-172 USB GPS GLONASS Receiver is a compact satellite-navigation receiver designed to add positioning capability to compatible computers and embedded systems through a standard USB connection. The VK-172 family is commonly built around the U-blox 7020 GNSS platform and provides GPS and GLONASS support with L1-band satellite reception. Once the appropriate driver and navigation software are configured, it can supply location data to mapping, navigation, monitoring and GPS-logging applications. The receiver supports 56 tracking channels and documented DGPS services including WAAS, EGNOS and MSAS. Typical specifications include approximately 5 m average basic positioning accuracy, improving to roughly 3.5 m with supported differential assistance under suitable operating conditions. Tracking sensitivity is specified around -162 dBm, while documented start times are approximately 29 seconds from cold, 28 seconds from warm and about one second from a hot start. Its compact USB-stick form factor measures approximately 6.0 × 2.4 × 0.9 cm and contains its satellite antenna within the enclosure, avoiding the need for a separate external antenna for ordinary use. The VK-172 outputs standard navigation data suitable for compatible applications such as U-blox u-center and GPS-aware mapping software. For reliable satellite reception, it should be positioned where it has a reasonably clear view of the sky, since indoor walls and surrounding structures can weaken GNSS signals. Learn More
