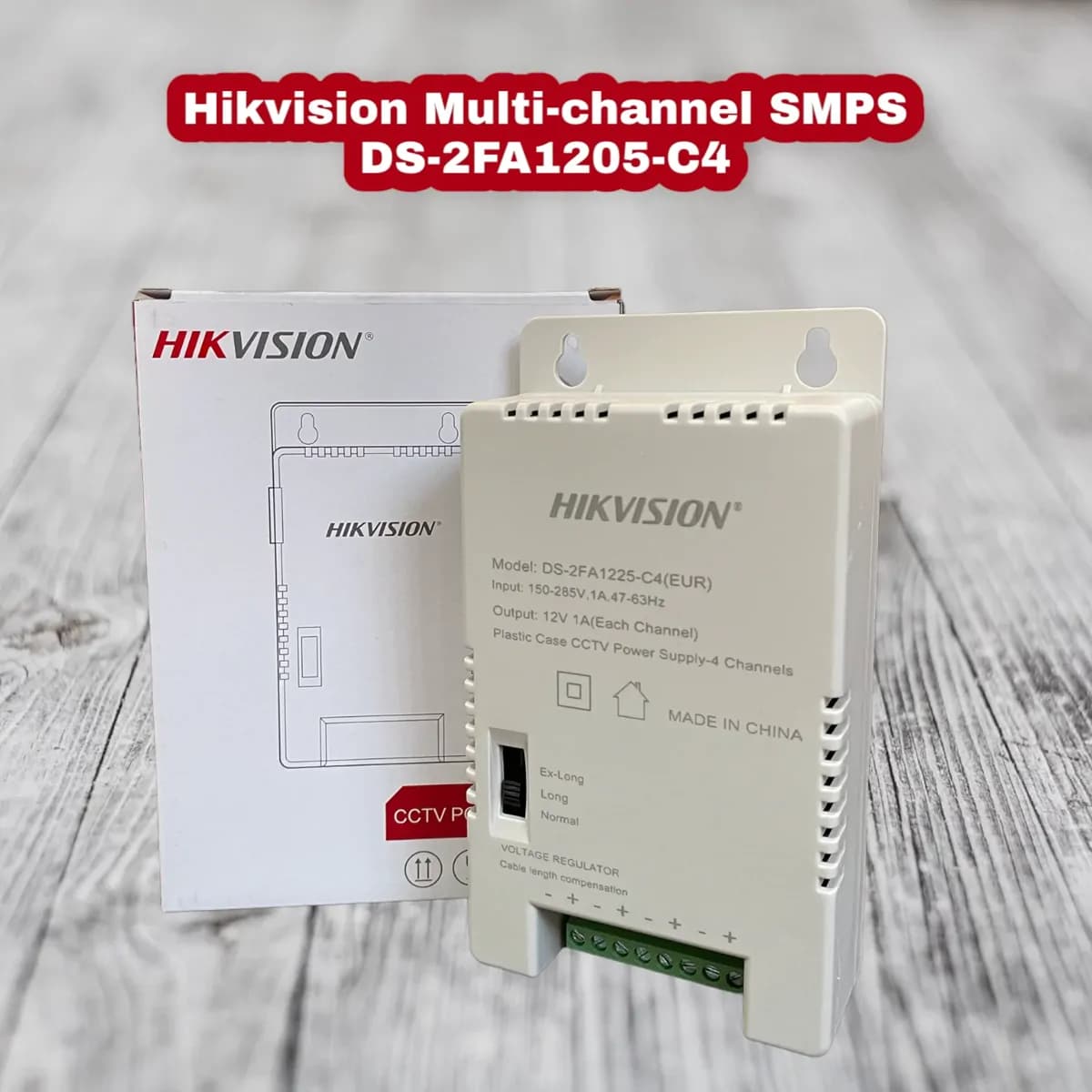

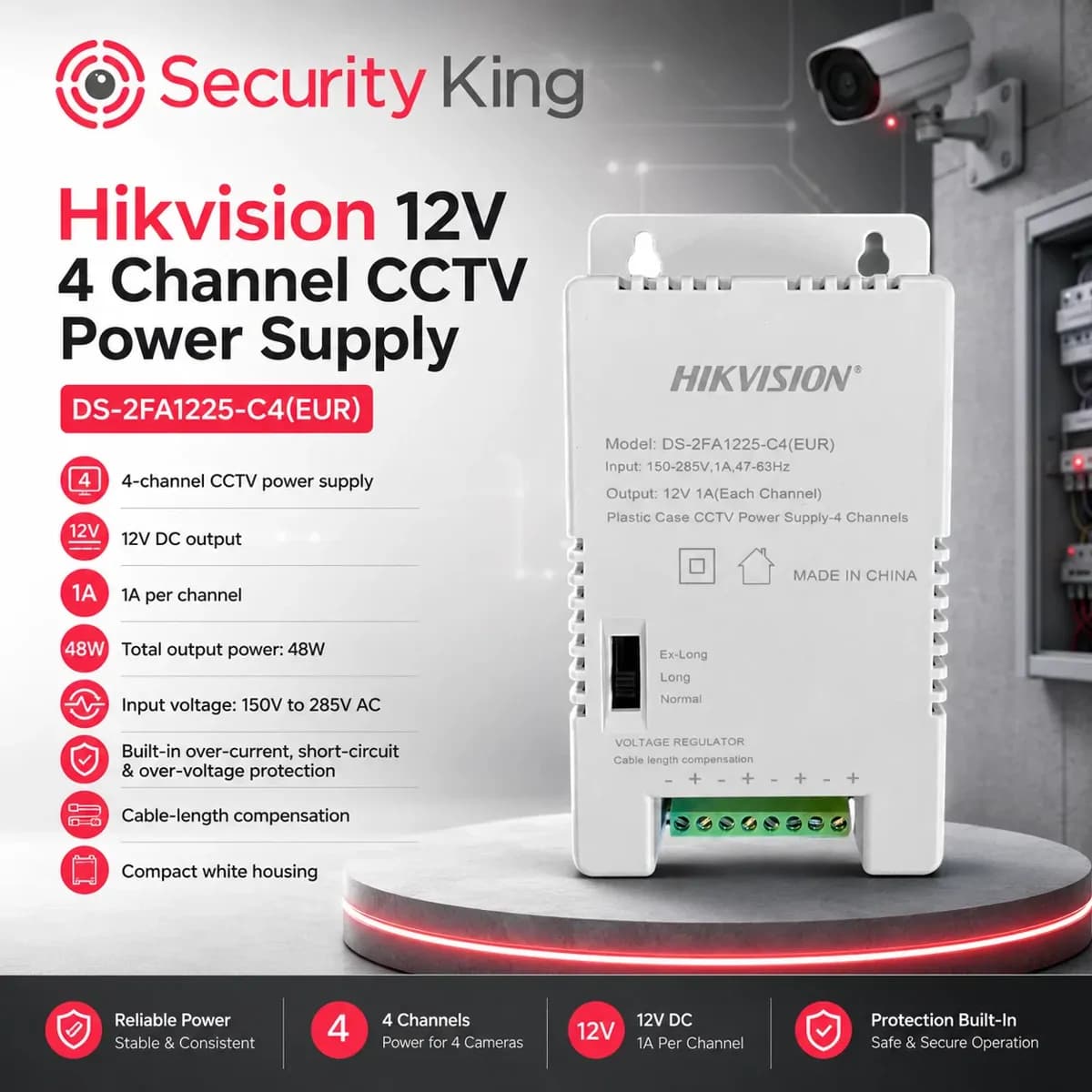

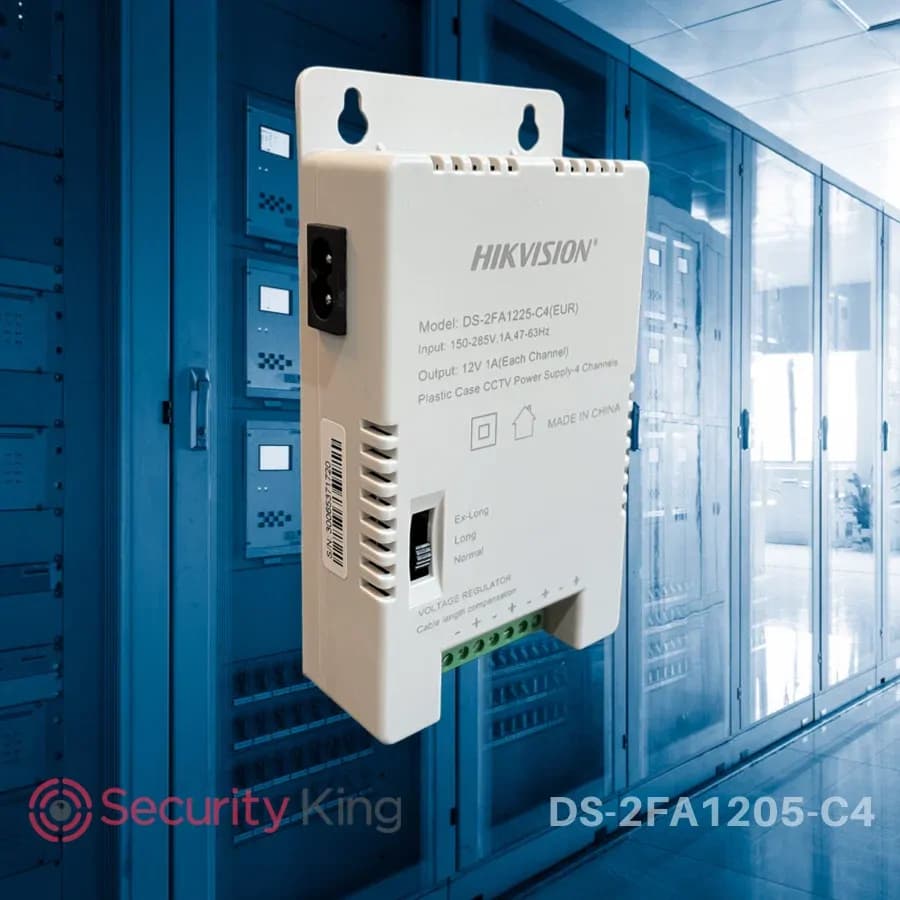

HikVision 12 Volts 4 Channel Cctv Power Supply - Ds-2fa1225-c4

Hikvision DS-2FA1225-C4 — 12V 4-Channel CCTV Power Supply — Specifications

Power Output

• Total power: 48W, 12 VDC / 1A per channel (4 channels)

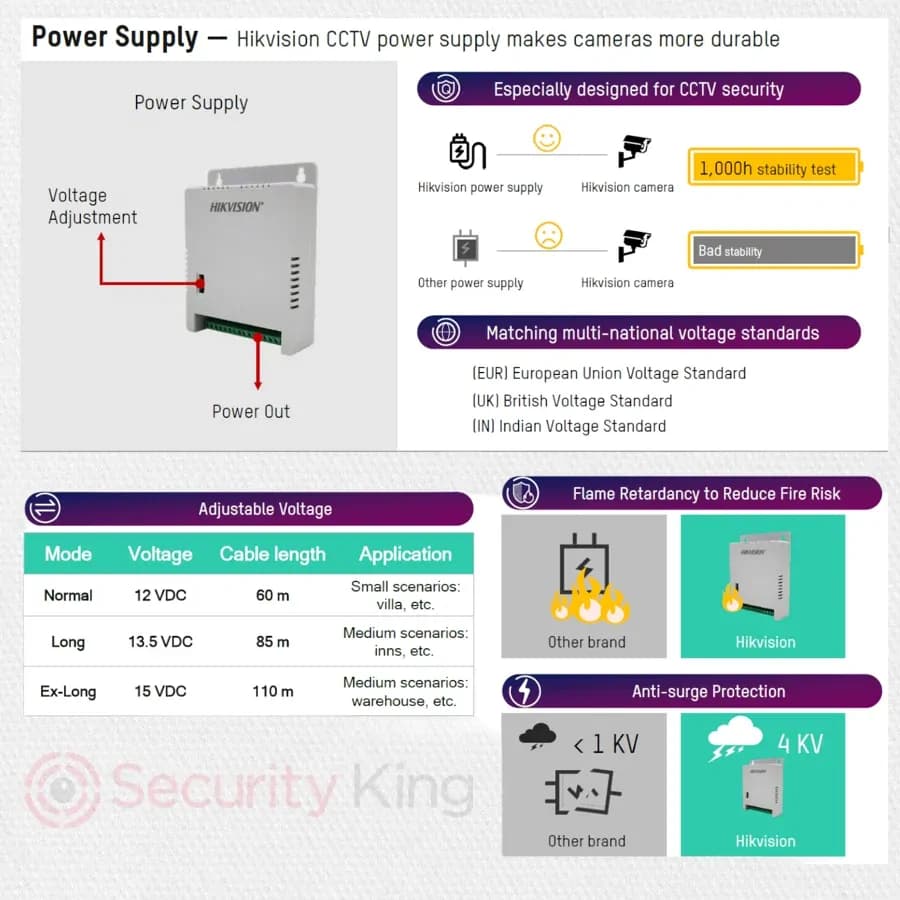

• Cable length compensation: Normal: 12 VDC / Long: 13.5 VDC / Ex-Long: 15 VDC
• Ripple & noise: 0.15 Vp-p (150 mV)

Input

• Input voltage range: 150 to 285 VAC, 47 Hz to 63 Hz (wide voltage input)
• AC input connector: C4

Protection

• Over current, short circuit, and over voltage protection
• Good EMC (electromagnetic compatibility) performance

Output

• DC output connector: DC plug / grid terminal
• LED indicator: Green

Build

• Appearance/color: White
• Dimensions: 144mm x 80mm x 33mm (5.67" x 3.15" x 1.30")
• Compact size, suitable for CCTV camera installations

Operating Conditions

• Operating temperature: 0°C to 40°C, humidity 10%–95% (non-condensing)
• Storage temperature: -40°C to 80°C, humidity 5%–95% (non-condensing)

In the Box

• 1x Hikvision 4-way PSU, 1x power cable
