Hikvision 12V 16-Channel CCTV Power Supply

Hikvision  12V 16-Channel CCTV Power Supply — Specifications

Power Output

• Total output: 60W, 12 VDC/1A per channel (16 channels)
• Selectable output voltage: DC 12V/13.5V/15V (selected by switch) — compensates for cable length/voltage drop
• Cable length compensation: Normal (12V) / Long (13.5V) / Extra-Long (15V)

Input

• Input voltage: 150–285 VAC
• Frequency: 47–63 Hz

Protection

• Over current / short circuit / over voltage protection
• Per-channel fault isolation
• Fused output protection — each channel protected by individual fuses

Build

• Dimensions: 185 x 130 x 40mm  — some resellers list 144 x 109.5 x 33mm (5.67" x 4.31" x 1.30"), so confirm with seller
• Durable metal casing, industrial-grade components
• Individual LED indicators showing power status per channel

Applications

• Applicable to all kinds of CCTV products and other load-matching products
• Ideal for medium to large surveillance systems — commercial, residential, or industrial use

Storage Condition

• Normal temperature, away from moisture and direct sunlight

Warranty

• 1-year limited warranty

In the Box (typical)

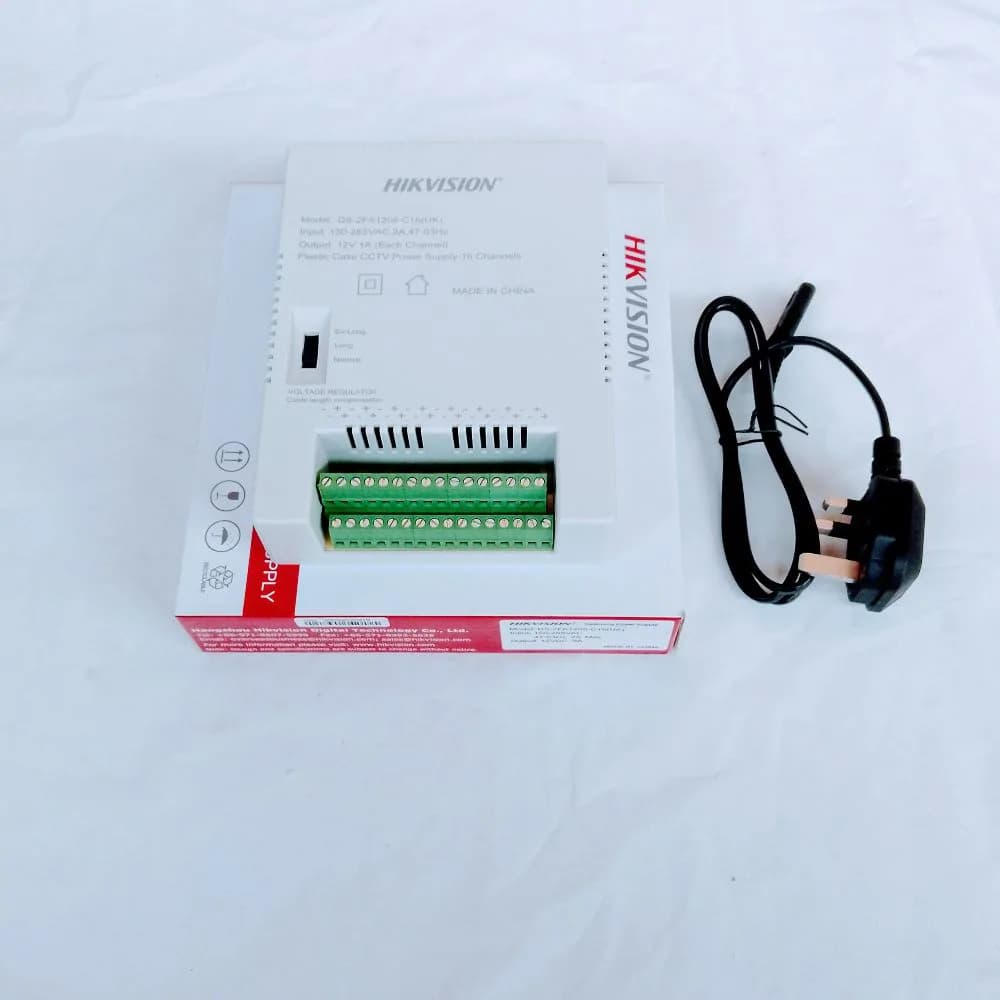

• 16-channel PSU, AC power cord, terminal connectors, quick start guide
