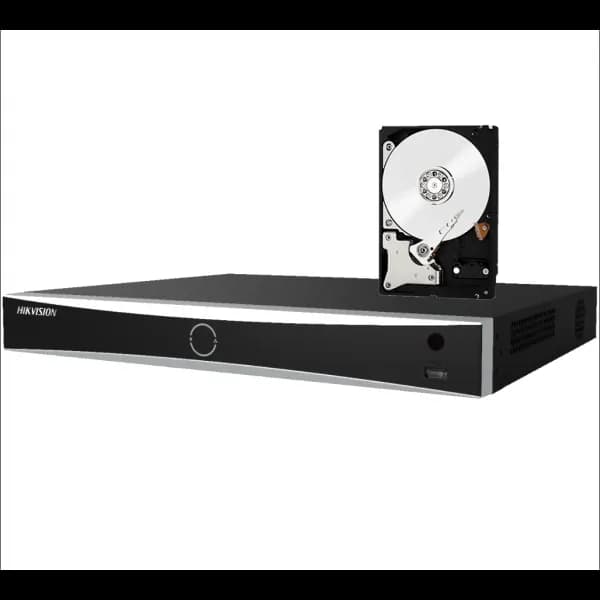

HikVision 32 Channel Non Poe Network Video Recorder Ds-7632nxi-k2 1u K Series Acusense 4k Nvr

Hikvision DS-7632NXI-K2 — 32-Channel Non-PoE K Series AcuSense 4K NVR — Specifications

Camera Support

• Up to 32-ch IP camera inputs (add via IP address)
• Dual NIC support for dedicated IP camera network programming
• No built-in PoE ports — cameras connect via separate PoE switch

Video

• Video formats: H.265+/H.265/H.264+/H.264
• Decoding capacity: Up to 2-ch @ 12MP, 3-ch @ 8MP, 6-ch @ 4MP, or 12-ch @ 1080p
• Incoming bandwidth: Up to 256 Mbps

Video Output

• 1 HDMI + 1 VGA — independent output, supports dual-monitor setups with independent view configuration

AcuSense Intelligence

• AcuSense technology minimizes false alarms via human/vehicle recognition
• AcuSearch technology for efficient, filtered playback
• Motion Detection 2.0 — all channels, 4MP analysis (up to 8MP with enhanced SVC mode)
• Perimeter protection: 2-ch @ 4MP (device-based) or all channels (camera-based with AcuSense cameras)
• Supports VCA events (virtual line, intrusion area, etc.)

Facial Recognition

• Face picture comparison, human face capture, face picture search
• Up to 16 face picture libraries, up to 20,000 face pictures total (≤4MB per picture, ≤1GB total)
• Facial detection/analytics: 1-ch @ 8MP
• Face picture comparison: 4-ch

Storage

• 2 SATA interfaces, up to 10TB capacity per HDD (up to 20TB total)
• Automatic overwrite when storage is full
• USB ports for backup/export to external drives

Network & API

• 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• ONVIF (Profile S/G), SDK, ISAPI

Build

• Chassis: 1U rackmount
• Dimensions: 385mm x 315mm x 52mm (15.2" x 12.4" x 2.0")
• Weight: ≤1kg (without HDD)
• Power consumption: ≤15W (without HDD)
