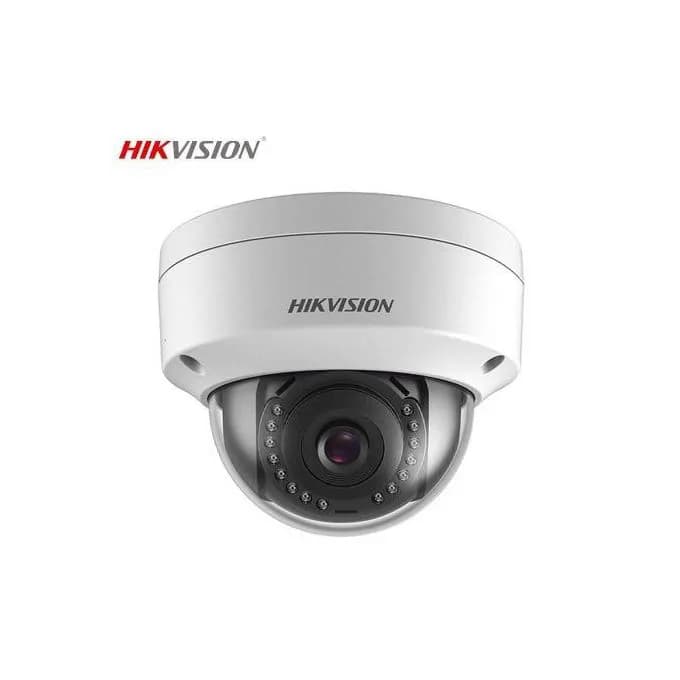

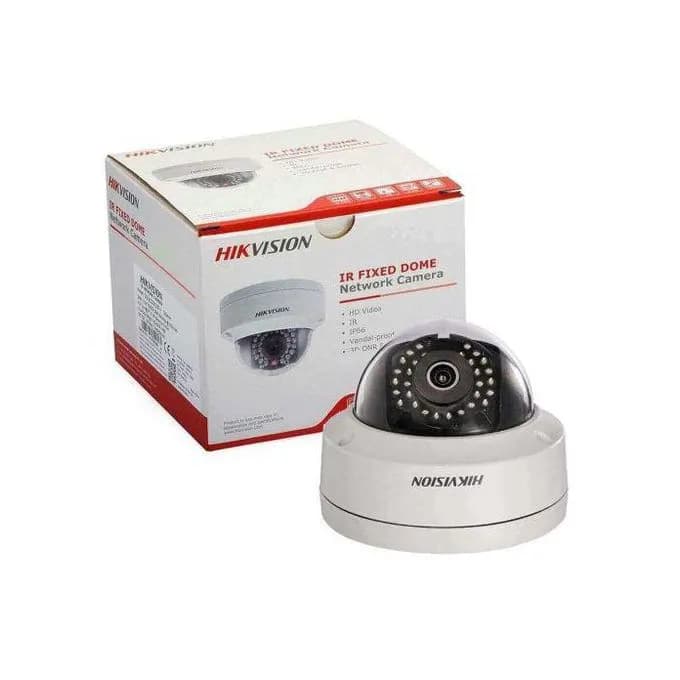

HikVision 4 Mp Md2.0 Fixed Dome Network Camera Ds-2cd1143g2-i

Hikvision DS-2CD1143G2-I — 4MP MD2.0 Fixed Dome Network Camera — Specifications

Image Sensor

• Max resolution: 2560 × 1440 (4MP)
• Min illumination: Color 0.01 Lux @ (F2.0, AGC ON); B/W 0 Lux with IR
• Frame rate (main stream): 50Hz: 20fps (2560×1440), 25fps (1920×1080/1280×720); 60Hz: 20fps (2560×1440), 24fps (1920×1080/1280×720)
• Sub-stream: 50Hz: 25fps (1280×720/640×480/640×360); 60Hz: 24fps (same resolutions)

Lens

• Options: 2.8mm (horizontal FOV 99°, vertical 55°, diagonal 116°) or 4mm (horizontal FOV 76°, vertical 41°, diagonal 90°)

Video Compression

• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG

Smart Features (MD2.0)

• Motion Detection 2.0 — reduces false alarms triggered by irrelevant movement

Image Enhancement

• 120dB WDR for clear imaging against strong backlighting

Night Vision

• EXIR 2.0 advanced infrared technology, long IR distance

Build & Protection

• IP67 water and dust resistance
• IK10 vandal-resistant rating

Power

• 12 VDC ±25%, 0.4A, max. 5W (Ø5.5mm coaxial power plug)
• PoE: 802.3af, Class 3, 36V–57V, max. 6.5W

Weight

• Approx. 577g (camera only); ~400g (packaging)

Operating Conditions

• Storage/Operating temperature: -30°C to 60°C, humidity 95% or less (non-condensing)

Security

• Password protection, complicated password, watermark, HTTP basic/digest auth, ONVIF WSSE/digest auth, security audit log, MAC address host authentication

Network/API

• ONVIF, ISAPI, SDK compatible
• Image settings: rotate mode, saturation, brightness, contrast, sharpness, gain, white balance — adjustable via client software or web browser

Certifications

• FCC, CE-EMC, RCM, IC, KC (EMC); UL, CB, CE-LVD, BIS (Safety); CE-RoHS, WEEE (Environment)
