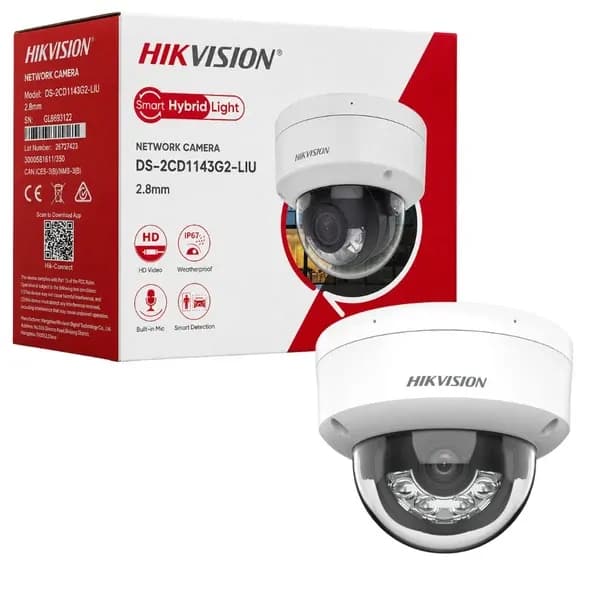

HikVision 4 Mp Smart Hybrid Light Fixed Dome Network Camera Ds-2cd1143g2-liu

Hikvision DS-2CD1143G2-LIU — 4MP Smart Hybrid Light Fixed Dome Network Camera — Specifications

Image Sensor

• 1/3" Progressive Scan CMOS sensor
• Max resolution: 2560 × 1440 (4MP)
• Min illumination: Color 0.005 Lux @ (F1.6, AGC ON); B/W 0 Lux with IR
• Frame rate (main stream): 50Hz: 20fps (2560×1440), 25fps (1920×1080/1280×720); 60Hz: 20fps (2560×1440), 24fps (1920×1080/1280×720)
• WDR: 120dB, plus 3D DNR

Lens

• Options: 2.8mm (horizontal FOV 98°, vertical 54°, diagonal 114°) or 4mm (horizontal FOV 78°, vertical 42°, diagonal 93°)

Smart Hybrid Light / Night Vision

• Hybrid IR and white light illumination, auto-switching based on scene/schedule/trigger
• IR range: up to 30m for discreet monochrome night vision
• White light activates for full-color imaging in low light, also serving as an intruder deterrent
• Configurable via smart schedules or motion-based triggers

Intelligent Detection

• AI-powered human and vehicle detection, reducing false alarms
• Line crossing and intrusion detection (deep learning-based)

Audio

• Built-in microphone for real-time audio monitoring
• Audio bit rate: 64 Kbps (G.711 ulaw/alaw), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)

Compression

• H.264, H.264+, H.265, H.265+, MJPEG

Build & Protection

• IP67 water/dust resistance, IK08 vandal-resistant rating
• Dome-shaped design for enhanced vandal resistance

Power & Connectivity

• PoE support
• RJ45 Ethernet

Storage

• Onboard microSD storage support up to 512GB

Network/API

• ONVIF (Profile S, Profile T, Profile G on -F model), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Security

• Password protection, complicated password, watermark, HTTP basic/digest auth, ONVIF WSSE/digest auth, security audit log, MAC address host authentication
