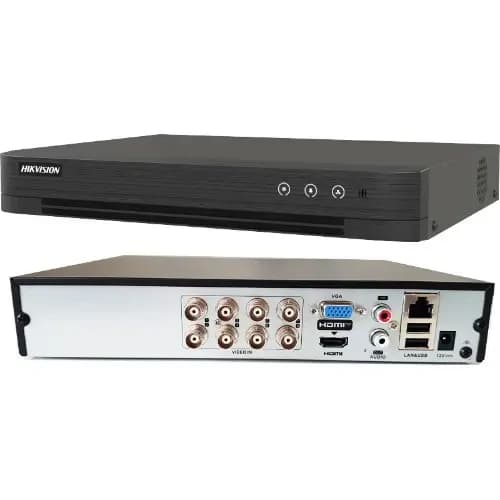

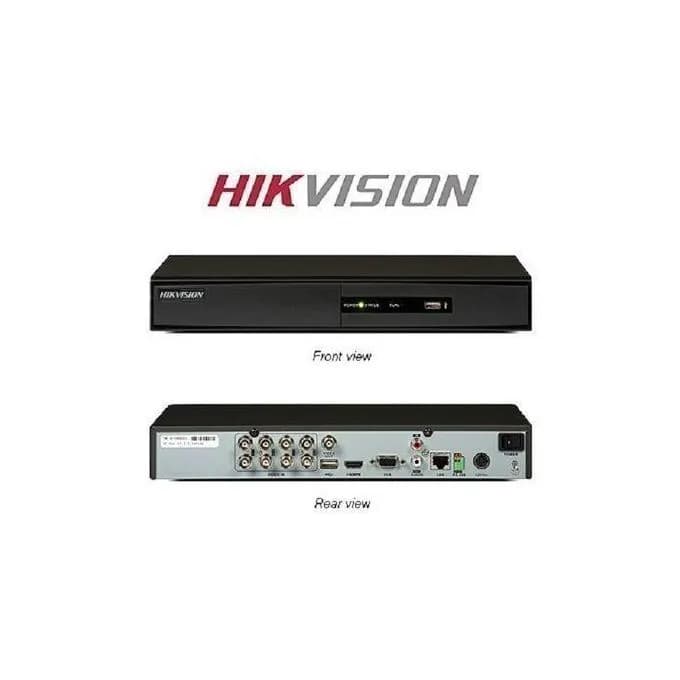

HikVision Ds-7208hghi-m1 | 8 Channel 1uh.265+ Digital Video Recorder Hdtvi/ahd/analog/ip Dvr

Hikvision DS-7208HGHI-M1 — 8-Channel 1U H.265+ DVR — HDTVI/AHD/Analog/IP — Specifications

Video Input

• 8-channel analog video input (HDTVI/AHD/CVI/CVBS)
• Up to 10-ch IP camera inputs (via substitution of analog channels), each up to 5 MP resolution
• Long-distance transmission: max. 1200m for 720p HDTVI signal

Recording

• Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (1080p stream); 720p/WD1/4CIF/VGA/CIF (720p stream)
• Frame rate: Up to 15 fps (1080p/720p streams), up to 25/30 fps (SD stream)
• Sub-stream: CIF/QVGA @ 15 fps

Smart Features

• Deep learning-based Motion Detection 2.0 with human/vehicle classification, enabled by default on all analog channels
• Quick search by object or event type

Audio

• Audio input via coaxial cable

Storage & Playback

• 1 SATA interface, up to 4TB capacity per HDD
• Smart search for efficient playback

Video Output

• Full HD HDMI and VGA simultaneous output

Network

• Hik-Connect & DDNS support for easy remote network management

In the Box (typical)

• DVR unit, mouse, AC/DC 12V power adapter, CD with manual/software

Form Factor

• 1U rackmount
