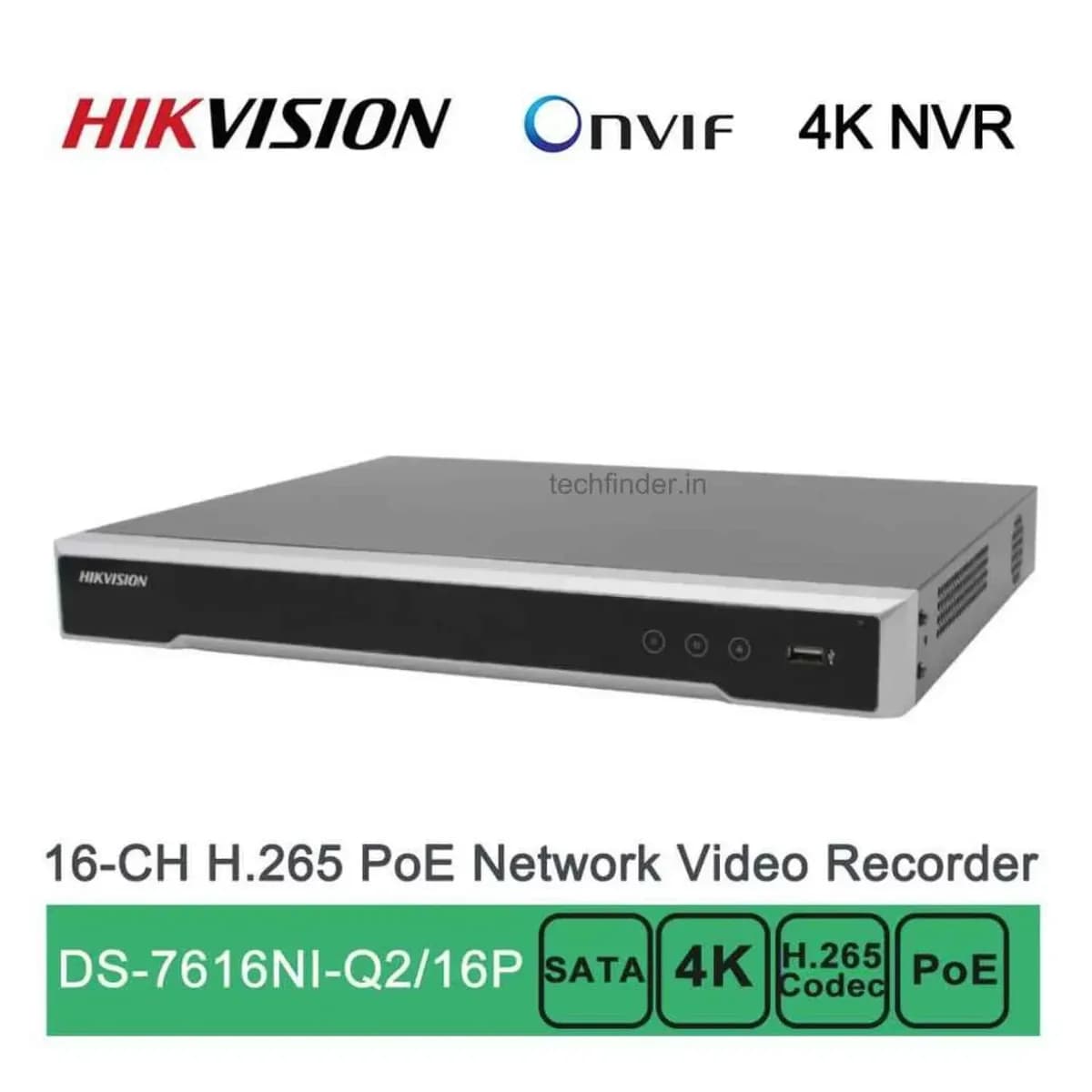

HikVision Ds-7616ni-q2/16p Hik 16 Channel 16 Poe 4k Nvr Network Video Recorder

Hikvision DS-7616NI-Q2/16P — 16-Channel 16 PoE 4K NVR Network Video Recorder — Specifications

Camera Support

• Up to 16-ch IP camera inputs
• Compatible with Hikvision and third-party ONVIF Profile S/T-compliant IP cameras
• Supports mixed camera resolutions across channels (e.g., 8MP on some, 1080p on others)

Video

• Max recording resolution: 8MP (4K), 30fps at 4096×2160
• Video formats: H.265+/H.265/H.264+/H.264
• Decoding capacity: Up to 2-ch @ 8MP / 4-ch @ 4MP / 8-ch @ 1080p
• Incoming bandwidth: Up to 160 Mbps

Video Output

• 1-ch HDMI: up to 4K (3840×2160)/30Hz, 1920×1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• 1-ch VGA — both HDMI and VGA support independent output

Connectivity

• 16 independent, built-in PoE network interfaces (plug & play)
• Power budget: 150W

Storage

• 2 SATA HDD ports, up to 16TB total storage capacity
• Circular/overwrite recording — oldest footage automatically overwritten when storage limit is reached
• No native NAS connectivity (local SATA + microSD backup only)

Smart Functions

• Smart search for selected video areas, smart playback
• Supports heat map, line crossing, intrusion detection, ANPR, and people counting (with compatible smart IP cameras)

Network & Management

• Centralized management of Hikvision and third-party IP cameras
• Hik-Connect 5.0 support for remote mobile access

Build

• Form factor: 1U rackmount
• Color: Black
• Environment: Indoor
