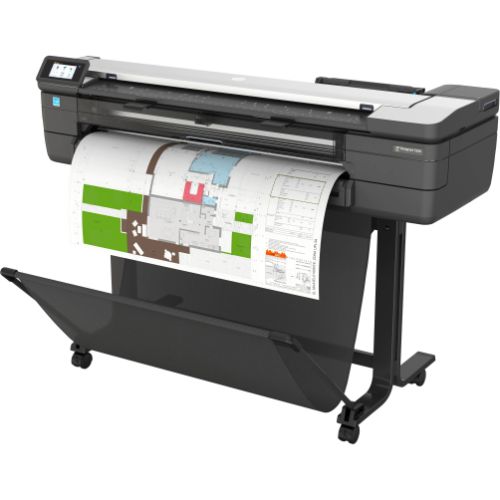

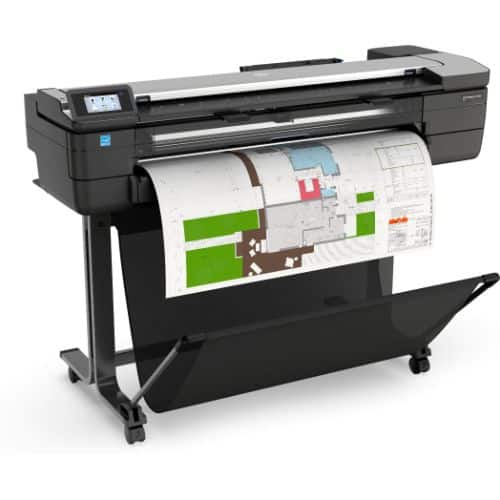

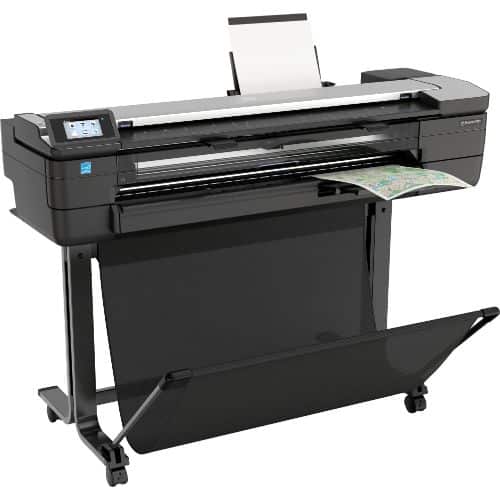

HP Designjet T830 details
HP Designjet T830 36-in Multifunction Printer (F9A30D) Immediately update all your partners on project review results with the most compact large-format MFP. Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward.
This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:
COMMUNICATION – Immediately share meeting results
Use a built-in scanner to copy and distribute sketches and hand-annotated drawings to peers/partners right away.
Easily link your computer, smartphone, or tablet to the printer with Wi-Fi Direct.
Share drawings immediately – scan/email from the front panel, use HP Smart app4 to email contacts, post to cloud.
CONVENIENT – Fast, agile, intuitive print/scan/copy
Enjoy easy installation in the office, construction job site with the most compact 36-in large-format MFP.
Easily print project sets and PDF documents with HP Click printing software.
Anyone can print smoothly from a smartphone or tablet with HP Mobile Printing.
TRUSTED – HP DesignJet quality and reliability
Get HP DesignJet quality also in small-format sizes – print half-size documents with 50 sheet A4/A3 input tray.
Smart scanning technology protects originals from damage when scanning and obtains precise colors.
Reinforced design and strong legs for easy transport and use at the job site.
Specifications
FunctionsPrint, copy, scan
Model size914 mm
Print speed line drawing (economode, A1 plain paper)82 A1 prints per hour[1]
Print technology HP Thermal Inkjet
Printer drivers included HP-GL/2, HP-RTL drivers for Windows; Raster driver for macOS and Windows
Print quality color (best)Up to 2400 x 1200 optimized dpi
Print languages HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF
Number of print cartridges4 (C, M, Y, mK)
Ink types Dye-based (C, M, Y); pigment-based (mK)
Line accuracy±0.1%[2]
Maximum optical density (black)8 L* min/2.10 D[3]
HP ePrint capability Yes
Connectivity, standard Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
Connectivity, optional HP USB 3.0 to Gigabit LAN Adapter
Network ready Standard
Memory1 GB
Maximum Memory1 GB
Internal StorageNone
Finished output handling Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
Media sizes standard (metric rolls)279 to 914 mm
Media sizes, customInput tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 914 x 1897 mm
Media typesBond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)
Roll external diameter100 mm
Media thickness Up to 11.8 mil
Scanner typeSheetfed, CIS (Contact Image Sensor), media jam detection sensor, the front feed scanning method
Scan resolution, optical Up to 600 dpi
Enhanced scanning resolution600 dpi
Bit depth24-bit/8-bit
Scan size, maximum914 mm x 2.77 m
Linear scan speedUp to 3.81 cm/sec (colour, 200 dpi); Up to 11.43 cm/sec (greyscale, 200 dpi)
Copy resolution (color text and graphics)Up to 600 x 600 dpi
Copy reduce / enlarge settings50 to 400%
Copies, maximum Up to 99 copies
Copier settingsContent type; Lighter/Darker; Background noise removal; Background colour removal; Blue print invert; Translucent media; Colour; Scan full width; Auto De-skew; Resize; Copy Margins; Quality
PowerInput voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max
Power consumption35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
Energy-star certified Yes
Operating temperature range5 to 40ºC
Minimum dimensions (W x D x H)1403 x 605 x 1155 mm
Weight58.2 kg
UPC number194850951800
Package dimensions (W x D x H)1578 x 570 x 645 mm
Package weight80.7 kg
What’s in the box
HP Designjet T830 36-in MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers
Software included HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows
Manufacturer WarrantyTwo-year limited warranty. Warranty and support options vary by product, country, and local legal requirements.
